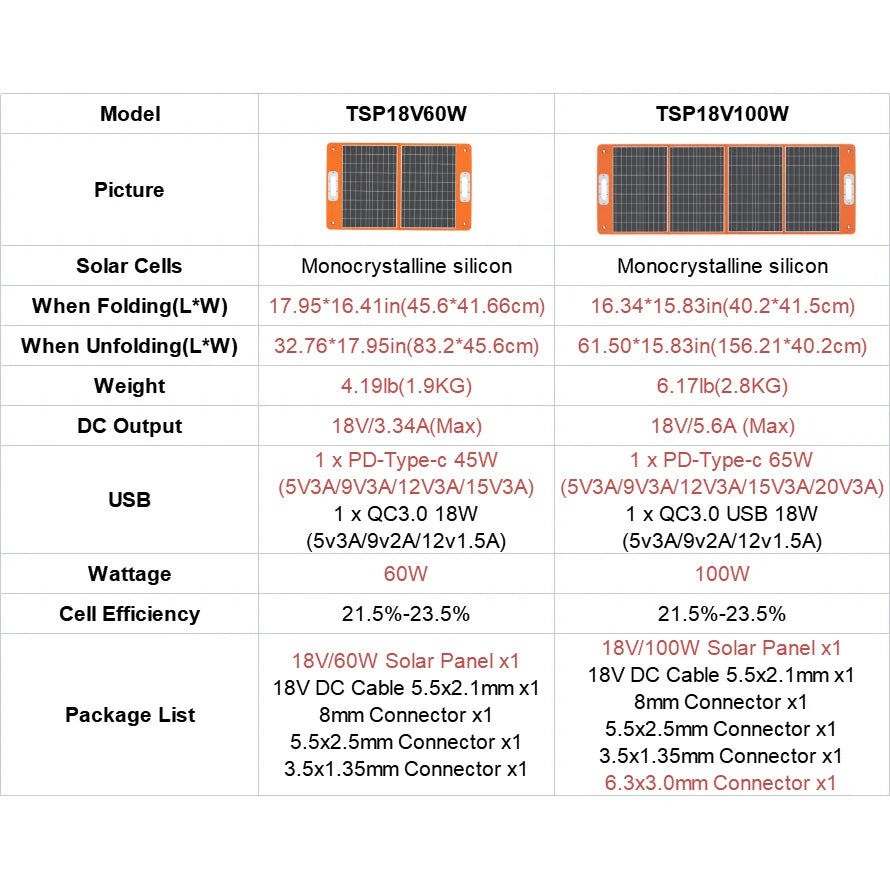

SPECIFICATIONS



Model Number: TSP 18V 100W

Solar conversion rate: 21.5% -23.5%

Rated output: 60W

DC output voltage: 18V /5.56A Max

USB A output (QC3.0): 18W Max

USB C output: 65W Max

Folded Size: 16.34X15.83in

Unfolded size: 61.50X15.83in

Product Weight: 6.17lb (2.8kg)

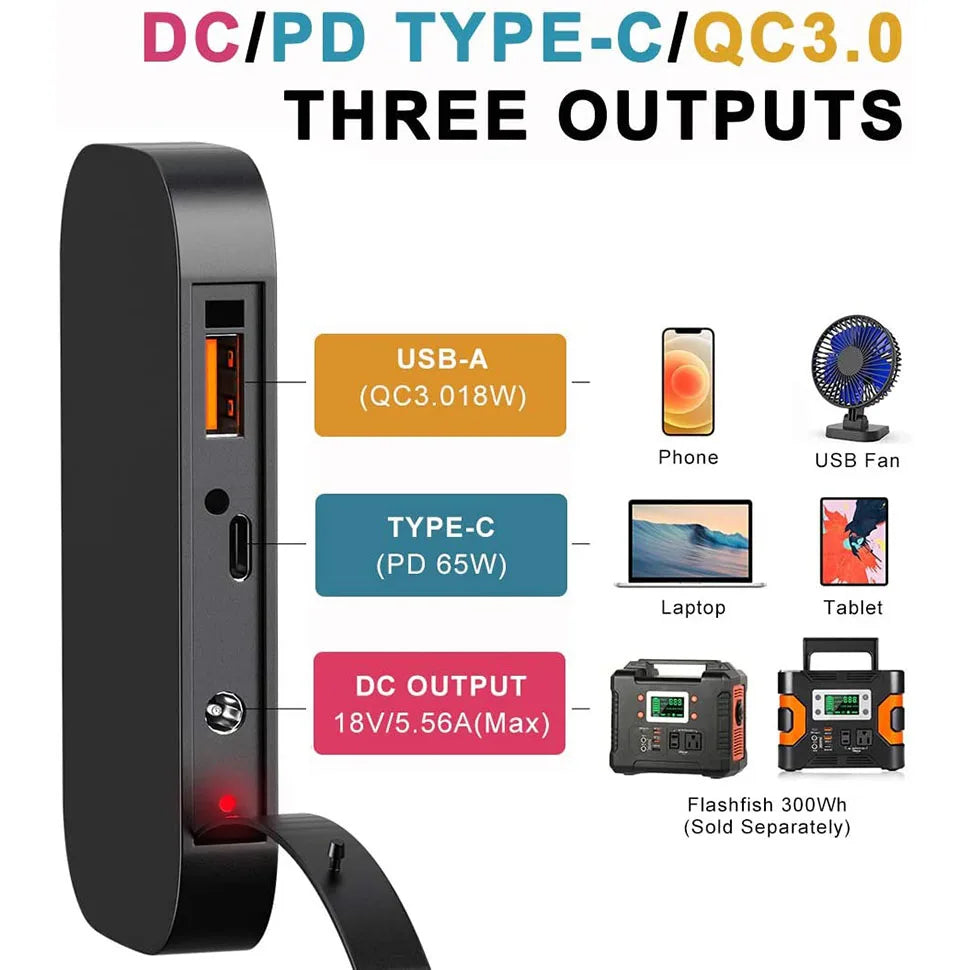

USB-A Output (QC3.0 18W)

Type-C Output (PD65W)

Flexible and Foldable

Easy to set up & Save Space

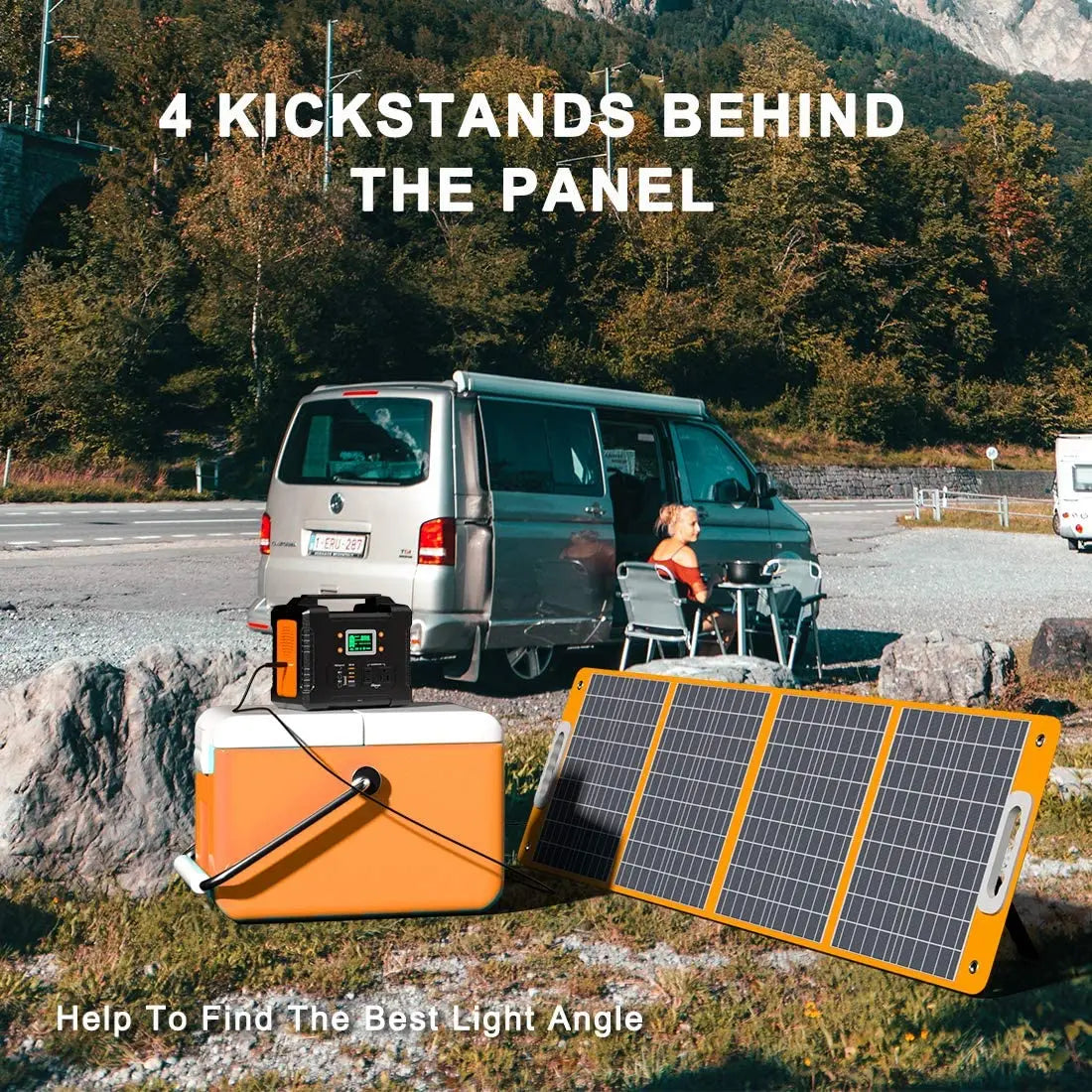

The portable solar panel captures more solar energy than lying flat by adjusting itskickstands to a perfect angle (45°+5°).

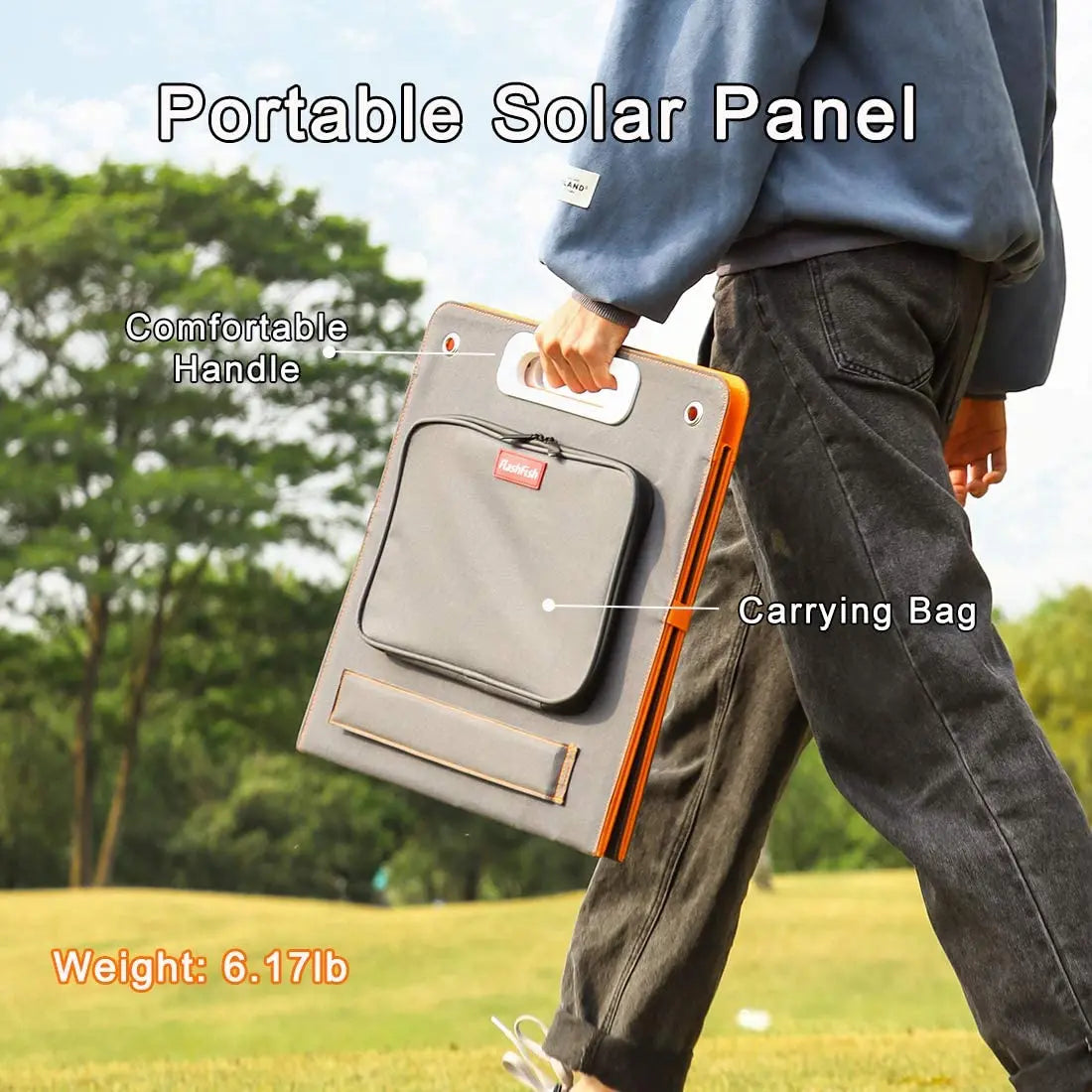

Handle Design More Portable

23.5% High Efficiency

Simple Operation

        1. Unzip the zipper and find the port of the solar panel.

        2. Plug one end of the cable into the DC output port of the solar panel (DC5521 female)

        3. Plug one end of the cable into the input port of Power Station

          (If you use other brands of Power Station, pay attention to the size of the port)

        4. Successfully charged!

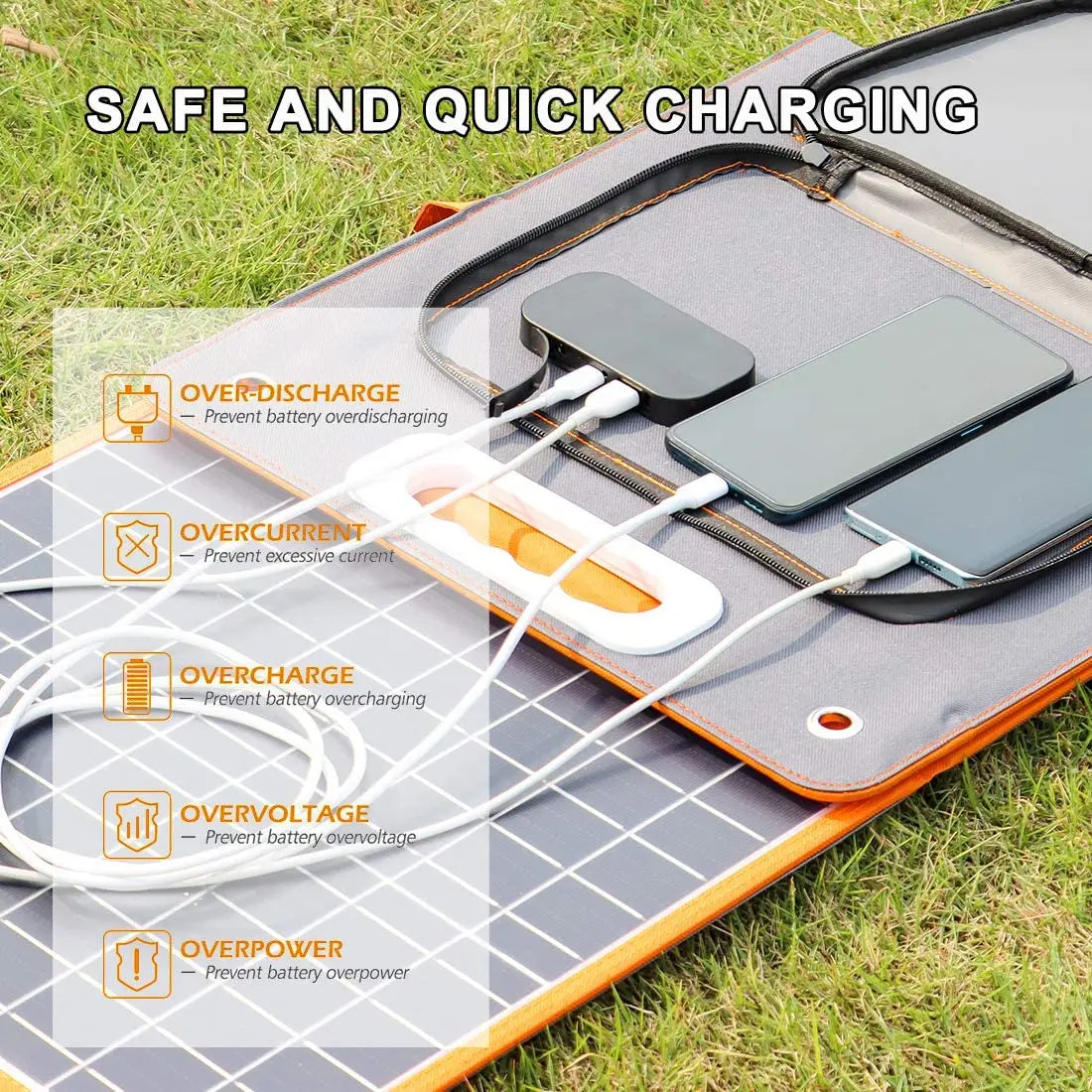

Safety ls A Top Priority

Stay safe with the most reliable cells and BMS

(Battery Management System)



√Over heating Protection

√Over Current Protection

√Over Voltage Protection

√Short Circuit Protection
